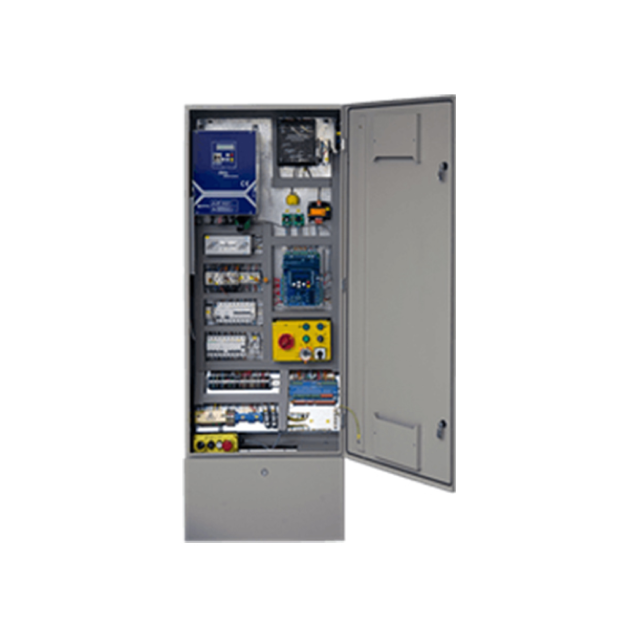

The Arkel ARL 700 elevator control panel complies with EN 81-20 standards. It is capable of operating at speeds of up to 2.5 m/s and supports up to 64 stops for hydraulic and traction elevators.

TECHNICAL SPECIFICATIONS

• Door Control
  • Compatible with all types of automatic doors.
  • One door control input/output in the revision box and two in the control panel.
• Motor-Phase Protection
  • Protection Systems:
    • Built-in motor phase protection.
    • Emergency alarm siren operable from cabin top and shaft bottom buttons.
    • Special connections for safety circuits in the control panel, revision box, and pit box.
    • Cabin and shaft power supply fuses with leakage current protection.
    • Shaft lighting control via pulse current switch, operable from cabin top and shaft bottom buttons.
• Remote Control
  • Control of the ARCODE system from any point via a handheld terminal connected to the CANbus line.

FUNCTIONS

• Serial cabin communication via the CANbus line.
• Direct connection between the control panel and revision box using flat, socketed cables.
• Plug-and-play connection between the cabin control panel and the revision box with a single socketed cable.
• Serial floor communication via the CANbus line or parallel floor connection using the MSP16 card.
• Modular shaft-wide CANbus system with socketed cables connecting floors.
• Plug-and-play connection for floor button panels at each floor using socketed cables connected to the shaft CANbus system.
• Modular door contact circuits with socketed cables connecting floors.
• Plug-and-play connection for door interlock contacts at each floor.
• Single cable socketed connection with the pit box.
• Independent door control for each stop with dual door support.
• Easy floor rescue using a single-phase 220VAC UPS or battery pack.
• Compatible with hydraulic and other VVVF drives via the HSR card.
