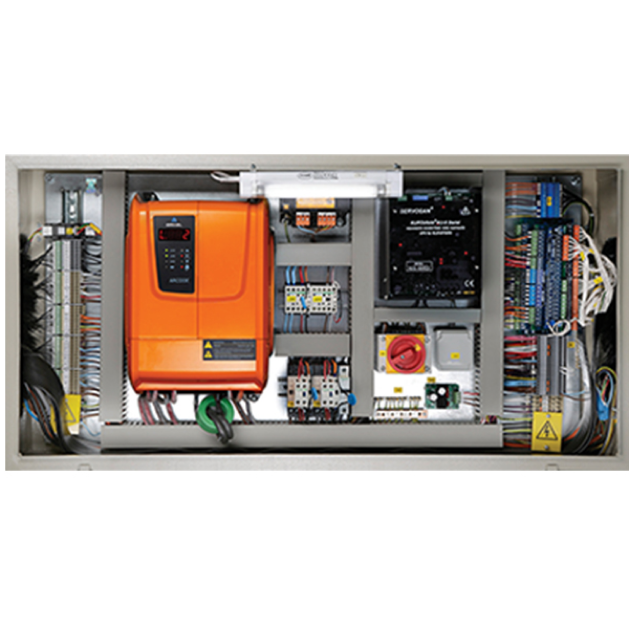

The ARCODE elevator control panel complies with EN 81/1-2/20+A3 standards and supports operation at speeds of up to 4 m/s, handling up to 64 stops for hydraulic and traction elevators.

TECHNICAL SPECIFICATIONS

• Door Control
  • Compatible with all types of automatic doors.
  • One door control input/output in the revision box and two in the control panel.
• Motor and Phase Protection
  • Built-in motor phase protection.
  • Cabin and shaft power supply fuses with leakage current protection.
  • Emergency alarm siren operable from cabin top and shaft bottom buttons.
  • Pulse current switch for shaft lighting control, operable from cabin top and shaft bottom buttons.
• Remote Control
  • ARCODE system controllable from any point via a handheld terminal connected to the CANbus line.
• Safety Circuit Connections
  • Special connections for safety circuits in the control panel, revision box, and pit box.

FUNCTIONS

• Communication
  • Serial cabin communication via the CANbus line.
  • Serial floor communication via the CANbus line or parallel floor connection using the MSP16 card.
  • Modular shaft-wide CANbus system with socketed cables connecting floors.
• Connections
  • Direct connection between the control panel and revision box using flat, socketed cables.
  • Plug-and-play connection between the cabin control panel and the revision box with a single socketed cable.
  • Floor button panels connected to the shaft CANbus system with socketed cables for each floor.
  • Modular door contact circuits with socketed cables connecting floors.
  • Plug-and-play connection for door interlock contacts at each floor.
  • Single cable socketed connection with the pit box.
• Door and Stop Support
  • Independent door control for each stop with dual door support.
  • Direct stop functionality for efficient operation on short floors.
• Emergency Operations
  • Easy floor rescue using a single-phase 220VAC UPS or battery pack.
